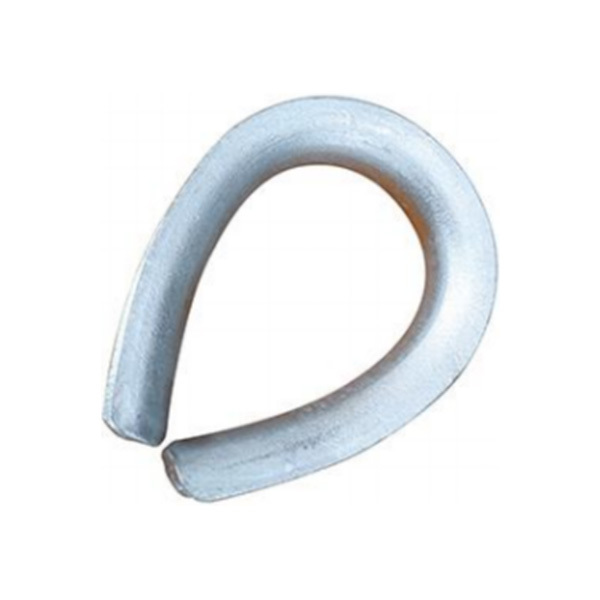

Jis A Wire Rope Thimble
Key words:
Jis A Wire Rope Thimble
Jis A Wire Rope Thimble
Classification:
Product Description
|
Specification |
Weight |
A |
B |
C |
D |
E |
F |
H |
L |
|
Kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
6mm |
0.02 |
36 |
26 |
27 |
16 |
8 |
6 |
3 |
1 |
|
8mm |
0.04 |
48 |
35 |
36 |
22 |
10 |
8 |
4 |
1 |
|
9mm |
0.05 |
51 |
38 |
40 |
25 |
11 |
9 |
4 |
1 |
|
10mm |
0.07 |
58 |
44 |
45 |
28 |
13 |
10 |
4 |
1.5 |
|
12mm |
0.11 |
68 |
52 |
54 |
34 |
15 |
12 |
5 |
1.5 |
|
14mm |
0.16 |
78 |
58 |
61 |
38 |
17 |
14 |
6 |
1.5 |
|
16mm |
0.25 |
92 |
68 |
72 |
44 |
20 |
16 |
7 |
2 |
|
18mm |
0.3 |
100 |
76 |
75 |
48 |
22 |
18 |
7 |
2 |
|
20mm |
0.04 |
112 |
85 |
86 |
54 |
24 |
20 |
8 |
2 |
|
22mm |
0.58 |
122 |
92 |
95 |
60 |
27 |
22 |
9 |
2.5 |
|
24mm |
0.76 |
136 |
102 |
105 |
65 |
29 |
24 |
10 |
2.5 |
|
26mm |
0.89 |
144 |
110 |
110 |
70 |
31 |
26 |
10 |
2.5 |
|
28mm |
1 |
156 |
120 |
120 |
75 |
33 |
28 |
11 |
2.5 |
|
30mm |
1.31 |
166 |
125 |
130 |
80 |
35 |
30 |
12 |
2.5 |
|
32mm |
1.62 |
180 |
135 |
140 |
85 |
38 |
32 |
13 |
3 |
|
34mm |
1.91 |
186 |
140 |
145 |
90 |
40 |
34 |
14 |
3 |
|
36mm |
2.24 |
196 |
150 |
150 |
95 |
42 |
36 |
14 |
3 |
|
38mm |
2.5 |
205 |
155 |
160 |
100 |
44 |
38 |
15 |
3 |
|
40mm |
3.17 |
220 |
165 |
170 |
105 |
46 |
40 |
16 |
3 |
|
42mm |
3.38 |
232 |
175 |
180 |
110 |
52 |
42 |
17 |
5 |
|
44mm |
4.2 |
242 |
180 |
190 |
115 |
54 |
44 |
18 |
5 |
|
46mm |
5 |
252 |
190 |
195 |
120 |
58 |
46 |
18 |
5 |
|
48mm |
5.3 |
260 |
195 |
205 |
125 |
58 |
48 |
19 |
5 |
|
50mm |
6.18 |
274 |
205 |
215 |
130 |
60 |
50 |
20 |
5 |
|
55mm |
9 |
310 |
230 |
235 |
142 |
65 |
55 |
22 |
6 |
|
60mm |
11.5 |
335 |
250 |
255 |
155 |
70 |
60 |
26 |
7 |
|
65mm |
15.5 |
358 |
265 |
276 |
168 |
75 |
65 |
27 |
8 |
How to use the thimble:
① Select the appropriate thimble according to the wire rope diameter as required, use the same type of chuck to set a certain spacing to tighten the nut, and each rope loop should be locked with at least three chucks and the directions of the chucks should be the same.
② The steel wire rope is braided into the rings at both ends, and a steel sleeve is used to add sealant and press it into a rope sleeve using a sleeve pressing machine.
③ After inserting the ring as needed, insert the end into the 8-shaped or oval aluminum sleeve, add sealant and press it tightly with a press.
④ Common usage of the ring
Inspection standards for thimbles
1. The thimbles should be smooth and flat, without any cracks, flaws, sharp edges and surface roughness defects that may damage the wire rope. The tip of the thimble should fit freely, and the tip should be shortened to half the depth of the groove.
2. The surface of the thimble should be hot-dip galvanized, and the surface should be smooth and flat, without defects such as missed plating, zinc particles, bubbles, cracks, etc. The galvanized layer should have sufficient adhesion strength during normal use.
3. The material of the thimble can be Q235B carbon steel (A3) or 45# high-quality carbon steel.
4. The safety load of the thimble should not be less than 32% of the minimum breaking tension of the wire rope.
5. When in use, the thimble should be selected in accordance with the specifications of the wire rope, and the diameter of the shaft pin used should not be less than twice the diameter of the wire rope.
6. If the thimble is cracked or damaged, it should be scrapped.
7. If the thimble is in contact with the wire rope and there are serious rope marks, it should be scrapped.
